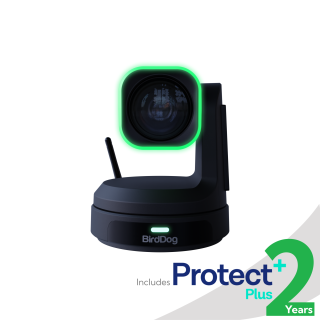

X1 Ultra is a WiFi-enabled PTZ camera from BirdDog with 12x optical zoom and UHD resolution. It comes with a built-in NDI decoder, designed specifically for confidence monitoring, returns, or use with teleprompters. This allows all mentioned features to be enabled through just one cable.
Of course, the camera is NDI-capable and, thanks to NDI|HX3 compression, it does not overload the network while maintaining excellent image quality. Whether for live events, in dynamic environments, on the hunt, or in sports: thanks to the AI tracking technology, the camera intelligently tracks every subject in real time.
Designed for live productions, the PTZ camera also features a highly visible tally light. The E-Ink label allows for network address capturing for control access and customizable logos to support any brand image. Thanks to this feature, each camera can be identified even when powered off. In addition to WiFi functionality, the X1 Ultra also features regular Ethernet with PoE.
The camera is available as the X1 with 20x zoom in HD and the X1 Ultra with 12x optical zoom in UHD.
Features:
- WiFi-enabled PTZ camera with 12x optical zoom in UHD
- NDI | HX3
- Built-in NDI decoder
- AI Tracking
- Tally Light
- E-Ink Label
Tech Specs:
- Image Sensor: Sony 1/2.8'' CMOS ULTRA HD
- Lens: f = 4.1 mm - 49.2 mm
- Optical Zoom: 12x
- Video Formats: 2160p @ 30/29.97/25fps
- 1080p @ 30/29.97/25fps
- 720p @ 30/29.97/25fps
- Horizontal Angle of View: 70.28° (W) - 6.57° (T)
- Vertical Angle of View: 42.06° (W) - 3.76° (T)
- Diagonal Angle of View: 78.36° (W) - 7.5° (T)
- Aperture: T1.8 - T2.68
- Focus: Auto, Manual
- Effective Pixels: 8.29 MP
- Pan/Tilt Rotation: ±175°, -90° - +90°
- Pan Control Speed: 0.1 - 80°/sec.
- Tilt Control Speed: 0.1 - 60°/sec.
- Preset Number: 255 Presets
- Video Output Interfaces: HDMI, USB-C, Network
- Video Compression Format: H.264, H.265
- Network Interfaces: 100M adaptive Ethernet port; PoE IEEE802.3af, Wi-Fi IEEE 802.11ac Encoder Network Protocol: NDI|HX2, NDI|HX3, RTSP, RTMP HDMI Decoder Network Protocols: NDI|HX2, NDI|HX3
- Input Voltage: DC 12V, PoE IEEE802.3af Input Current: 2.0A (max.)
- Power Consumption: 13W (max.)
- Input Current: 2.0A (max.)
- Operating Temperature: -10°C ~ +40°C
- Dimensions (LxWxH): 17.16 cm x 19.26 cm x 17.16 cm / 26 cm x 21.7 cm x 19.7 cm (Unpacked / Packed)
- Net and Gross Weight: 1.43 kg / 2.096 kg (Net/Gross weight)
Package Contents:
- 1x X1 Ultra Camera
- 1x Remote Control
- 1x DC 12V Power Supply
- 1x Mounting Screws
- 1x Silicone Numbers for the Back
- 1x USB Cable
BirdDog is now part of Protect Plus! This means that when you purchase a next-generation camera, you’ll receive two years of extended replacement service and 24/5 phone support.
In short: Fast assistance and reliable service – for maximum planning security.
All information is subject to change. Please also refer to the current and detailed manufacturer's information.
