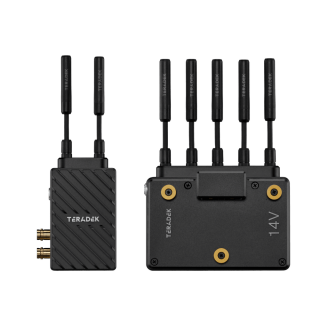

Teradek Bolt 6 LT 750 TXRX Deluxe Set Gold-Mount
Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. External Antenna models now ship with new flexible V-antennas.
Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.
The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.
Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.
About 6 GHz:
- Wifi routers, mobile phones, IoT devices, and wireless video systems from competitors are among the many devices that utilize the 5GHz frequency for wireless communication, leading to a heavily congested area where interference and even video dropouts are common. The Bolt 6 utilizes the newly opened 6GHz frequency for a significantly quieter radio environment (although it can still be set up in 5GHz mode for backward compatibility). In the 6GHz mode, Bolt 6 users experience faster connections and less interference for a better WLAN experience.
- For the 6GHz band, Bolt 6 uses different antennas than the predecessor model Bolt 4K.
Features:
- Video transmission in the 6 GHz band: faster connections and less interference
- Range: 220 meters (750 feet)
- Video: up to 4K60
- Inputs/Outputs: 12G-SDI, HDMI 2.0
- V-Mount
- <1ms latency
- Operates in 5 GHz & 6 GHz Band
- Backward compatible with Bolt 4K
- Supports HDR, HLG, and PQ (10-bit 4:2:2)
- AES-256 encryption and RSA 1024 Key Pairing
- Transmits to up to six receivers without quality loss
- Fan 50% quieter than Bolt 4K
What's in the box:
- 1x Bolt 6 LT 750 TX
- 1x Bolt 6 LT 750 RX Gold Mount
- 1x Lightstand Adapter ¼-20in
- 1x Hot Shoe Adaptor
- 1x 2pin Conn. to PowerTap - 18in/46cm Cable
- 1x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
- 2x SDI - BNC to BNC Cable, 10in
- 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
- 1x Wooden Camera - Teradek Offset Mount for Bolt 4K LT TX
- 1x Bolt 6 LT TX Color Band (Red Rubber)
- 1x Bolt 6 LT TX Color Band (Yellow Rubber)
- 1x Bolt 6 LT TX Color Band (Green Rubber)
- 1x Bolt 6 LT TX Color Band (Blue Rubber)
- 1x Bolt 6 LT RX Color Band (Red Rubber)
- 1x Bolt 6 LT RX Color Band (Yellow Rubber)
- 1x Bolt 6 LT RX Color Band (Green Rubber)
- 1x Bolt 6 LT RX Color Band (Blue Rubber)
