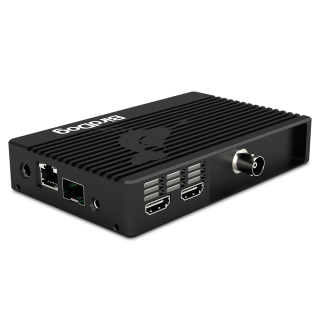

BirdDog 4K HDMI
The BirdDog 4K HDMI NDI Encoder/Decoder is one of the three models in the BirdDog 4K family.
This converter family has been specifically designed for real-world use. It is based on BirdDog's NDI silicon chip, designed according to customer needs, and protected by an aluminum housing. The features of the 4K family include 12G-SDI and HDMI2.0 inputs and outputs, an integrated cross-converter, SFP+ port for 10GbE connectivity, active loop-outs, audio intercom system, an NDI tally system, PoE, and compatibility with the BirdDog apps Comms Pro and Central Pro.
With support for all video formats up to 4Kp60 (including all HD formats), encoding and decoding of 4K Full NDI has never been easier. All SDI ports of the 4K series are 12G-SDI, including the four SDI ports of the 4K Quad Converter. All HDMI ports are designed as 2.0 for maximum compatibility.
The BirdDog 4K HDMI Converter provides one HDMI2.0 video input and output each, one 12G-SDI video output, and one HDMI audio input (2Ch, 48 kHz). The HDMI2.0 input can be looped through the 12G-SDI output (cross converter).
The SFP+ port (industry standard) allows fiber connections over short, medium, and long distances and supports Ethernet protocols from 1GbE to 10GbE. The integrated tally system requires no configuration. Its large light indicates to actors in front of the camera which camera is live.
Features:
- Encode and decode up to 4Kp60
- SFP+ for 10 GbE and long range
- NDI Tally System
- Integrated Cross-Converter
- PTZ Control (with optional USB-to-Ethernet dongle)
Tech Specs:
- Video Codec: NDI (I-Frame compression with full bandwidth)
- Video Formats:
3840x2160p @ 23.98; 25; 29.97; 30; 50; 59.94; 60
1920x1080p @ 23.98; 25; 29.97; 30; 50; 59.94; 60
1920x1080i @ 50; 59.94
1280x720p @ 50; 59.94; 60
- Video I/O: HDMI 2.0 In, HDMI 2.0 Out, 12G SDI Out
- Audio Input: HDMI (2CH, 48 KHz); 3.5mm microphone/line-in
- Audio Output: HDMI (2CH, 48 KHz), SDI (2CH, 48 KHz); 3.5mm stereo headphone/line-out
- Down-converted NDI output 4K to 1080p, 1080p to 720p
- Display: Integrated 4-line OLED status display
- Onboard Bicolor Tally Display; selectable tally display on video loop outputs
- Ethernet RJ45 1000baseT with integrated PoE; open SFP+ cage (10Gb SFP+ adapters are available separately), Integrated web configuration panel
- Power Supply: 12V/16W DC; PoE+ 802.3at
- Dimensions: approx. 13.5mm x 8.5mm x 2.5cm
- Weight: approx. 260g
Package Contents:
- 1x BirdDog 4K HDMI NDI Encoder/Decoder
All information provided without guarantee. Please also refer to the current and detailed manufacturer's information.
