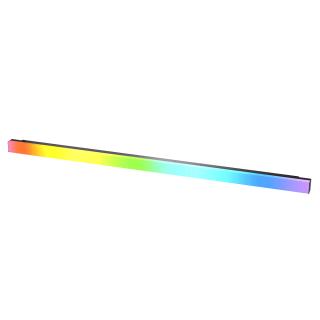

Aputure INFINIBAR PB12
The INFINIBAR Pixel Bar is Aputure's first RGBWW full-color LED pixel bar with a color temperature range of 2,000 to 10,000K. It is the professional choice for cinematographers and lighting designers who need lights with precise, simultaneously adaptable mounting options. Designed as a key light, the INFINIBAR can be directly built into sets with its lightweight, robust aluminum housing or used with a snap system.
With a length of 120 cm, the INFINIBAR PB12 offers 96 individual RGB pixel light zones. One of its features is the ability to connect multiple INFINIBARs of variable lengths via differently shaped connectors* to create creative shapes and effects. The gaps in these connections are largely eliminated visually through the integrated, stepless blending design. The 96 RGB pixel light zones thus provide seamless pixel effects.
The power supply is highly versatile. Multiple INFINIBARs can be connected and operated with a single power supply via the power-sharing ports. Alternatively, each light's internal battery provides approximately 80 minutes of full power and thus more flexibility.
Thanks to advanced wireless solutions, the 96 pixel light zones of the INFINIBAR PB12 can be wirelessly grouped and controlled via Sidus Link or LumenRadio CRMX. In addition to the nine system FX and seven pixel FX, the PB12 allows storing up to 20 user-defined FX in the Sidus Link app for quick access to various lighting modes.
The specially designed RGBWW chipset of the INFINIBAR PB12 produces a wide color CCT range of 2,000K to 10,000K with full green-magenta adjustment. It can reproduce more than 90% of colors within the Rec.2020 color space as well as accurate skin tones, reaching values of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.
* Each INFINIBAR includes a straight connector; the additional nine connectors are available separately.
** The Aputure Active USB-C to 5-Pin DMX In & Out Adapter is available separately.
Features:
- 27W RGBWW Full Color LED Pixel Bar with 120 cm length
- 96 individual pixel light zones
- Stepless blending design
- 10 different bar connectors*
- Multiple INFINIBARs use one power source
- Built-in battery (59.2Wh) with approx. 80 min runtime
- 100% brightness control in 0.1% increments
- Fully tunable CCT from 2,000K - 10,000K + G/M adjustment
- More than 90% of colors in the Rec.2020 color space
- Multiple control options: Sidus Link App, DMX/RDM via USB-C (available separately),
- LumenRadio CRMX
- 9 built-in system FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III,
- Lightning III, Party II
- 7 built-in pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase,
- Rainbow, Pixel Fire
- Supports SidusPro FX: including Manual FX, System FX, Picker FX, Magic Program, and Music FX
- Stores up to 10 user-defined FX and 10 music FX
- Flicker-free frequency selection
- Available in 8-light kit configurations
- Optional light control accessories: Softbox; 45º mount, Honeycomb Grid
* INFINIBAR includes a straight plug; additional nine connectors are available separately. 2 Aputure Active USB-C to 5-Pin DMX In & Out Adapter available separately
Tech Specs:
- CCT 2,000K - 10,000K
- CRI: 96+, TLCI: 98+, CQS: 96, SSI (D56): 74, SSI (Tungsten): 85
- TM-30 RF (Average): 94, TM-30 RG (Average): 103
- Color chipset: RGBWW
- Beam angle (at 50% power): 120°
- Brightness: 2077lm
- Max. output power: 27W
- Max. fixture consumption: 36.5W at 24V, 1.8A
- Power input: 40W
- Power supply 100V-240V 50/60Hz, 1.5A
- Battery capacity 7.4V, 8000mAh, 59.2Wh
- Battery runtime: approx. 80 minutes at maximum power
- Charging time: approx. 150 min. (24V/2.67A)
- Pixel Mapping: 96 pixels
- Operating temperature -10°C – 45°C
- Control methods: Sidus Link App, DMX/RDM via USB-C1, LumenRadio CRMX
- Range: Bluetooth 80m, LumenRadio 100m
- IP rating: IP 20
- Screen type: OLED
- Firmware upgradeable: Sidus Link, USB-C
- Passive cooling
- Dimensions:
- Mount: approx. 120.4 x 4.5 x 4.3 cm
- Housing: approx. 127.7 x 13 x 12.5cm
- AC power supply: approx. 12.0 x 5.3 x 3.2 cm
- Weight: approx. 2.85kg
Package Contents:
- 1x INFINIBAR PB12
- 1x 48W DC power supply (3m)
- 1x AC power cable with lock (1.5m)
- 2x Magnetic spacers
- 1x INFINIBAR clamp to baby pin adapter
- 1x INFINIBAR straight connector
- 1x 5mm hex key
- 1x Carrying bag
All information provided is without guarantee. Please also refer to the current and detailed manufacturer's information.
