Aputure INFINIBAR PB12 8-Light Kit
The INFINIBAR Pixel Bar is Aputure's first RGBWW full-color LED pixel bar with a color temperature range of 2,000 to 10,000K. It is the professional choice for cinematographers and lighting designers who need lights with precise, simultaneously adaptable mounting options. Designed as a key light, the INFINIBAR can be directly built into sets with its lightweight, robust aluminum housing or used with a snap system.
The INFINIBAR PB12 8-Light Kit includes eight of these Aputure pixel bars, each with a length of 120 cm and 96 individual RGB pixel light zones. One of their features is the ability to connect multiple INFINIBARs of variable lengths via differently shaped connectors* to create creative shapes and effects. The gaps in these connections are largely eliminated visually through the integrated, stepless blending design. The 96 RGB pixel light zones thus provide seamless pixel effects.
The 8-Light Kit expands the capabilities of this medium-sized multitool not only by eight times the amount of light but also by additional power cables, adapters, and grid light formers in a robust flight case. The 8-Light Kit can not only charge the battery of each light individually. Thanks to a 330-watt power adapter with an 8-way splitter, the batteries of all eight lights can be charged simultaneously.
The power supply during operation is highly versatile. Multiple INFINIBARs can be connected and operated with a single power supply via the power-sharing ports. Alternatively, each light's internal battery provides approximately 80 minutes of full power and thus more flexibility.
Thanks to advanced wireless solutions, the 96 pixel light zones of the INFINIBAR PB12 can be wirelessly grouped and controlled via Sidus Link or LumenRadio CRMX. In addition to the 9 system FX and 7 pixel FX, the PB12 allows storing up to 20 user-defined FX in the Sidus Link app for quick access to various lighting modes.
The specially designed RGBWW chipset of the INFINIBAR PB12 produces a wide color CCT range of 2,000K to 10,000K with full green-magenta adjustment. It can reproduce more than 90% of colors within the Rec.2020 color space as well as accurate skin tones, reaching values of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.
* Each INFINIBAR 8-Light Kit includes eight straight connectors; the additional nine connector types are available separately.
** The Aputure Active USB-C to 5-Pin DMX In & Out Adapter is available separately.
Tech Specs:
- CCT 2,000K - 10,000K
- CRI: 96+, TLCI: 98+, CQS: 96, SSI (D56): 74, SSI (Tungsten): 85
- TM-30 RF (Average): 94, TM-30 RG (Average): 103
- Color chipset: RGBWW
- Beam angle (at 50% power): 120°
- Brightness: 2077lm
- Max. output power: 27W
- Max. fixture consumption: 36.5W at 24V, 1.8A
- Power input: 40W
- Power supply 100V-240V 50/60Hz, 1.5A
- Battery capacity 7.4V, 8000mAh, 59.2Wh
- Battery runtime: approx. 80 minutes at maximum power
- Charging time: approx. 150 min. (24V/2.67A)
- Pixel Mapping: 96 pixels
- Operating temperature -10°C – 45°C
- Control methods: Sidus Link App, DMX/RDM via USB-C1, LumenRadio CRMX
- Range: Bluetooth 80m, LumenRadio 100m
- IP rating: IP 20
- Screen type: OLED
- Firmware upgradeable: Sidus Link, USB-C
- Passive cooling
- Dimensions:
- Mount: approx. 120.4 x 4.5 x 4.3 cm
- Housing: approx. 127.7 x 13 x 12.5 cm
- AC power supply: approx. 12.0 x 5.3 x 3.2 cm
- Weight: approx. 2.85 kg

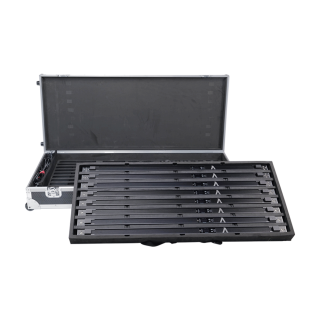

Package Contents:
- 8x Aputure INFINIBAR PB12
- 8x 48W power supply with 3m cable
- 1x Power cable (4m)
- 8x Power cable (1.5m)
- 1x 330W power supply with 8-way splitter
- 16x Magnetic mount
- 8x INFINIBAR Clamp with 16mm pin
- 8x INFINIBAR Straight Connector
- 8x INFINIBAR PB12 45º Light Control Grid
- 1x 5mm hex key
- 1x Flight Case
