Aputure Spotlight Max
The Aputure Spotlight Max is a projection lens modifier with Bowens Mount. It enables a high level of control over powerful Bowens Mount point lights from the LS 600d Pro and LS 1200d Pro to the Electro Storm CS15 and Electro Storm XT26.
This spotlight turns the Spotlight Max into even more powerful spotlights with greater range and shapes their light extremely evenly. The brightness of Aputure's high-performance spotlights is increased by up to 60 percent. With its telecentric lens technology, the Spotlight Max creates a lighting circle with uniform light distribution from edge to edge and minimal color fringing.
The Spotlight Max is available with 19°, 36°, and 50° lenses, covering a wide range of lighting projection needs on set. The 19° lens produces a focused, narrow beam, while the 36° lens or the 50° lens illuminates wider areas.
The internal baffles allow precise shaping and exact limitation of the light beam. The Spotlight Max Iris (optional) also offers two slats for quickly adjusting the shape and size of the lighting circle without having to replace the projection lenses. The rotatable gobo holder of the Spotlight Max is compatible with the included steel or glass gobos of sizes A and BS, enhancing any lighting design.
In addition, the Spotlight Max is compatible with ETC projection lenses when the Spotlight Max ETC Lens Adapter (optional) is used. This allows for combination with lenses of all sizes and beam angles. For better balance and ergonomic operation, the Spotlight Max comes with a removable yoke.
Features:
- Projection lens modifier with Bowens Mount
- Great control over powerful point lights
- Spot brightness increased by up to 60 percent
- Telecentric lens technology
- Compatible with 19°, 36°, and 50° lenses
- Internal baffles for precise light shaping
- Compatible with ETC projection lenses (ETC Lens Adapter optional)
- Removable yoke
Tech Specs:
- Spotlight Max Iris: approx. 22.3 x 12.8 x 1.35 cm, approx. 250 g
- ETC lens adapter (optional): approx. 13.98 x 13.98 x 10.5 cm, approx. 530 g
- Gobos size A (individually): 100 x 0.5 mm, approx. 22 g

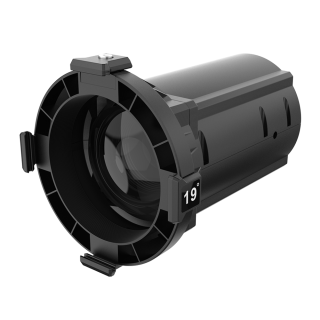

- Spotlight Max 19° lens:
approx. 20.47 x 19.94 x 26.58 cm
Lens diameter inner/outer: approx. 11.9/12.8 cm
Set without/with yoke: approx. 48.9 x 25 x 25 cm/48.9 x 25.0 x 50.1 cm
Weight lens/set: approx. 4.8/12.5 kg
- Spotlight Max 36° lens:
approx. 20.47 x 19.94 x 26.58 cm
Lens diameter inner/outer: approx. 11.9 cm/8.25 cm
Set without/with yoke: approx. 48.9 x 25 x 25 cm/48.9 x 25.0 x 50.1 cm
Weight lens/set: approx. 3.7/11.3 kg
- Spotlight Max 50° lens: approx. 20.47 x 19.94 x 24.74 cm
Lens diameter inner/outer: approx. 11.7 cm/10.4 cm
Set without/with yoke: approx. 47.2 x 25.0 x 25.0/47.2 x 25.0 x 50.1 cm
Weight lens/set: approx. 3.92 kg/11.54 kg
Scope of Delivery:
- 1x Spotlight Max 19° lens
- 1x Carrying case
All information is provided without guarantee. Please also refer to the current and detailed manufacturer's information.
