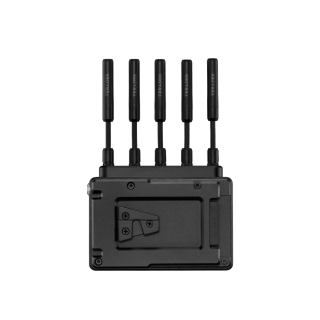

Teradek Bolt 6 LT 750 RX V-Mount
The Bolt 6 LT RX is a wireless real-time video receiver that supports 4K videos with Teradek's patented Zero-Delay technology, now with fewer disturbances due to the newly opened 6 GHz frequency. The Bolt 6 LT can receive color-accurate True HDR videos in less than 0.001 seconds.
Key features of the Bolt 6 LT RX include a range of 220 meters (750 feet), fast reconnection times, intuitive, easy setup with the Bolt Manager App for iOS or Android, and a consistent, stable connection. Bolt 6 LT utilizes the 6GHz band to provide users with better image quality and fewer disturbances. In heavily congested areas, the 6GHz wireless frequency offers Bolt 6 LT users twelve new channels for frequency adjustment. The Bolt 6 can also transmit metadata, timecode, and start/stop flags from most camera manufacturers.
In addition, Bolt 6 offers new tools for high-end users, including better visibility of connections and signals, making workflow in any challenging environment safer. Furthermore, it provides access to the new Long Range Mode, enabling better video quality at greater distances. An integrated 5-pin USB port allows for effortless and wireless camera control when using SmallHD Smart Monitors.
The extremely compact receiver included in the box is compatible with the entire Bolt-4K series - including Bolt 4K, Bolt 4K LT, and Bolt 4K monitor modules - giving you the flexibility to expand your workflow requirements. Connect up to six receivers to one transmitter.
The Bolt 6 LT series is available in three different ranges: 750 feet (220 meters), 1500 feet (440 meters), and the MAX set, with up to 5,000+ feet (1500 meters).
Since the Bolt 6 LT Kit has both 4K HDMI and 1080p SDI inputs and outputs, you can also choose the Bolt 6 LT HDMI model if your productions only require HDMI.
About 6 GHz:
Wifi routers, mobile phones, IoT devices, and wireless video systems from competitors are among the many devices that utilize the 5GHz frequency for wireless communication, leading to a heavily congested area where interference and even video dropouts are common. Bolt 6 utilizes the newly opened 6 GHz frequency for a significantly quieter radio environment (although it can still be set up in 5 GHz mode for backward compatibility). In the 6GHz mode, Bolt 6 users experience faster connections and less interference for a better WLAN experience. The 6GHz frequency is now available in the USA and Canada according to UNII-5 government specifications. Other countries will release the 6GHz frequency in 2023.
Note:
- For the 6GHz band, Bolt 6 uses different antennas than the predecessor model Bolt 4K.
Features:
- Range: 220 meters (750 feet)
- Video: up to 4K30
- Inputs/Outputs: 3G-SDI, HDMI 2.0
- <1ms latency
- Operates in 5 GHz & 6 GHz Band
- Backward compatible with Bolt 4K
- Supports HDR, HLG, and PQ (10-bit 4:2:2)
- AES-256 encryption and RSA 1024 Key Pairing
- Transmits to up to six receivers without quality loss
- Fan 50% quieter than Bolt 4K
Included in the Box:
- 1x Bolt 6 LT 750 RX V-Mount
- 2x Bolt 4K LT RX Battery Cover
- 2x Screw Flat Head Phillips
- 1x Ultra-thin HDMI Type A - HDMI Type A 18 Inch/46 cm Cable
- 1x (Bit 118) 2-pin Connector to PowerTap - 18in/46cm Cable
- 1x SDI - BNC to BNC Cable, 10 Inch
- 1x Power Supply 2-pin to 18W AC Adapter - 1.8m Cable
- 1x USB Type A to USB Type B Plug - 0.9m Cable
All information provided is subject to change. Please also refer to the current and detailed manufacturer's information.
