Ikan Lyra LBX10-POE
Ikan's PoE++ lights redefine simplicity. They enable quick and easy connection via an Ethernet cable.

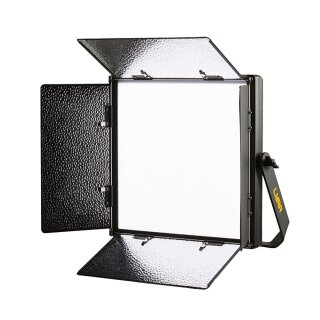

Thanks to their high CRI LED chips and 1/2-stop soft diffusion panel, these state-of-the-art 1×1 soft panel LED light LBX10-POE emits a soft, enveloping light that creates artifact-free shadows. Their color temperature range from 3200 K to 5600 K makes them the ideal choice for a variety of lighting productions. The 110-degree beam angle ensures comprehensive light coverage. Brightness, color temperature, and DMX channels can be adjusted using a yellow knob on the rear panel, supplemented by an LCD display. An integrated combination pin (5/8 inch and 1 1/8 inch) allows for easy use with all standard lighting stands.
LBX10-POE is powered via a single Ethernet cable (Cat6 RJ45 24AWG or better) – no additional cabling or power outlets are required. The LBX10-POE supports IEEE 802.3bt Type 4 PoE++, ensuring efficient power delivery over the network (IEEE 802.3bt Type 4 switch required).
LBX10-POE supports both ArtNet and sACN DMX protocols. This means that the Ethernet cable not only supplies power, but can also be used for DMX. This allows the light to be seamlessly integrated into the user's preferred DMX control systems. In addition, the LBX10-POE is also compatible with conventional DMX512 inputs and outputs (5-pin XLR).
With the Q-SYS plugin available in the Q-SYS Designer Asset Manager, the Ikan Lyra PoE light can be easily integrated into a Q-SYS ecosystem. The plugin allows light intensity and color temperature to be controlled for up to 256 lights directly in Q-SYS Designer. No special lighting knowledge is required. All lights can be set to optimal, preconfigured values at the touch of a button, ensuring a seamless and user-friendly experience in any environment. The web GUI allows you to change ArtNet and sACN settings, including DMX addresses and universes, and access configured IP address settings.
Features:
- PoE++ luminaire
- Art-Net & sACN (RJ45) or DMX512 (5-pin XLR)
- Compatible with Q-SYS control
- 97 CRI COB LEDs with soft diffusion panel (1/2 aperture)
- Silent, fanless device
- Uniform light across all color temperatures
- 110-degree beam angle
- Integrated wing gates with integrated clips
- Artifact-free, clean shadows
- Combination pin (5/8 inch and 1 1/8 inch)
- Available in Vectorworks 2025 Update 5
Tech Specs:
- Power: 85 W
- Bi-color 3200 to 5600 K
- CRI: 97
- TLCI: 99
- Illuminance at 5600K: 1076 lux (1.5 m), 269 lux (3 m) or 129 lux (4.5 m)
- At 4400K: 1087 lux (1.5 m), 290 lux (3 m) or 140 lux (4.5 m)
- At 3200K: 937 lux (1.5 m), 248 lux (3 m) or 118 lux (4.5 m)
- Dimming range: 0 to 100 percent
- Power input: 110-220Vs AC
- Power output: 48V AC
- Power consumption: 85W (max.)
- Chip LEDs
- DMX: ArtNet, sACN, or DMX512 (5-pin XLR)
- Passive cooling
- LED lifespan: approx. 70,000 hours
- Operating temperature: -12 to +40 degrees
