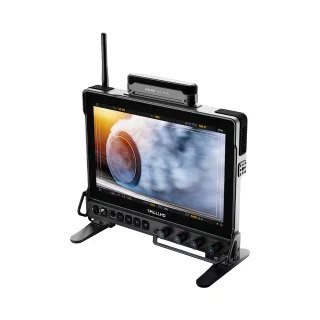

SmallHD Ultra 10 Bolt 6
Ultra 10 strikes the perfect balance between screen size and lightweight portability with a feature-packed 10-inch Ultra-Bright Monitor designed to adapt to any production scenario. Key features include 2000 nits of brightness, 6G-SDI architecture, an impact-resistant IP54-certified form factor, and more ways than ever to customize your PageOS workflow via touchscreen, joystick, large tactile buttons, and new multi-function rotary encoder knobs for maximum control in all conditions.
The Ultra 10 Bolt 6 RX features an integrated Teradek Bolt 6 Receiver, allowing you to receive zero-delay wireless video from your camera via the new internal V-Antenna at ranges up to 750 or 1500 feet. It is available as a Gold Mount or V-Mount option.
Ultra 10 is our first IP54-certified monitor, which is defined as resistant to water spray from any direction and protection against dust and dirt in extreme environments while operating in variable temperatures ranging from 0ºC to 40ºC. The chassis features raised edges protecting the front glass of the display and user-replaceable shock-absorbing bumpers to mitigate drops, tumbles, and impacts
Ultra 10 comes with 5-pin locking USB and Ethernet ports for optional ARRI, Sony VENICE, BURANO and FX6, and RED® Camera Control (license and cable sold separately).
Features:
- 2000nits max brightness
- Dust and water resistant with an IP54 rating
- 6G-SDI for modern 4K end-to-end workflows
- Camera Control compatible with all current SmallHD licenses
- Function knobs, buttons and a joystick for tactile control
- Integrated Bolt 6 RX 750 or 1500
- Production-ready, with Gold or V-Mount Wooden Camera Micro Battery Plates, Monitor Handles, and Neck Strap
Tech Specs:
- Panel Type: IPS LCD
- Diagonal Size: 10.1''
- Resolution: 1920x1200
- Contrast: 1000:1
- Color Depth: 10-bit Processing (8-bit panel)
- Backlight Type: LED Edgelit
- Refresh Rate: Synchronizes with input from 48Hz to 60Hz
- IP Rating: IP54
- Input: 6G-SDI, HDMI
- Output: 3G-SDI, HDMI
What's in the box:
- Ultra 10 Bolt 6 RX
- Right Angle D-Tap to 2pin Power Cable 18in
- Micro Battery Plate for SmallHD Ultra Series 12V
- Ultra 7, Ultra 10 RX Bolt 6 Color Bands
- Monitor Handles + Neck Strap
- Ultra Screen Protector for Ultra 10
- 8GB SD Card
- Cleaning Cloth
