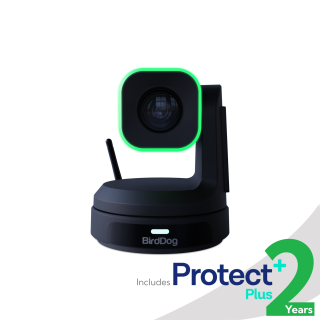

X1 is a WiFi-enabled PTZ camera from BirdDog with 20x optical zoom. The resolution is Full HD. It features a built-in NDI decoder, specially designed for confidence monitoring, retransmissions, or use with teleprompters. This allows all mentioned functions to be enabled through just one cable.
The camera is NDI-capable and does not overload the network thanks to NDI|HX3 compression, while maintaining image quality. Whether for live events, in dynamic environments, during hunting, or in sports: With AI tracking technology, the camera intelligently and in real-time follows any subject.
Designed for live productions, the PTZ camera also includes a highly visible Tally Light. The E-Ink label allows, among other things, the capturing of network addresses for accessing controls and creating customizable logos to support any brand image. Thanks to this feature, each camera can be identified even when powered off. In addition to WiFi functionality, the X1 also features regular Ethernet with PoE.
The camera is available as X1 with 20x zoom in HD and as X1 Ultra with 12x optical zoom in UHD.
Features:
- WiFi-enabled PTZ camera with 20x zoom in Full HD
- NDI | HX3
- Built-in NDI decoder
- AI tracking
- Tally Light
- E-Ink label
Tech Specs:
- Image sensor: Sony 1/2.8'' CMOS FULL HD
- Lens: f = 5.5 mm - 110 mm
- Optical zoom: 20x
- Video formats: 1080p @ 60/50/30/25fps
- 720p @ 60/50/30/25fps
- Horizontal field of view: 55.8 degrees (W) - 3.2 degrees (T)
- Vertical field of view: 32.2 degrees (W) - 1.8 degrees (T)
- Diagonal field of view: 61 degrees (W) - 3.64 degrees (T)
- Aperture: T1.6 - T3.5
- Focus: Auto, Manual
- Effective pixels: 2.07 MP
- Pan/Tilt rotation: ±175 degrees, -90 degrees ~ +90 degrees
- Pan control speed: 0.1 - 80 degrees/sec
- Tilt control speed: 0.1 - 60 degrees/sec
- Preset number: 255 presets
- Video output interfaces: HDMI, USB-C, Network
- Video compression formats: H.264, H.265
- Network interfaces: 100M adaptive Ethernet port; PoE IEEE802.3af, Wi-Fi IEEE 802.11ac Encoder network protocol: NDI|HX2, NDI|HX3, RTSP, RTMP HDMI decoder network protocols: NDI|HX2, NDI|HX3
- Input voltage: DC 12V, PoE IEEE802.3af Input current 2.0A (max.)
- Power consumption 13W (max.)
- Input current: 2.0A (max.)
- Power consumption: 13W (max.)
- Operating temperature: -10°C ~ +40°C
- Dimensions (LxWxH): 17.16 cm x 19.26 cm x 17.16 cm / 26 cm x 21.7 cm x 19.7 cm (Unpacked / Packed)
- Net and gross weight: 1.35 kg / 2.05 kg (Net/Gross weight)
Package Includes:
- 1x X1 camera
- 1x Remote control
- 1x DC 12V power supply
- 1x Mounting screws
- 1x Rear silicone numbers
- 1x USB cable
BirdDog is now part of Protect Plus! This means that when you purchase a next-generation camera, you’ll receive two years of extended replacement service and 24/5 phone support.
In short: Fast assistance and reliable service – for maximum planning security.
