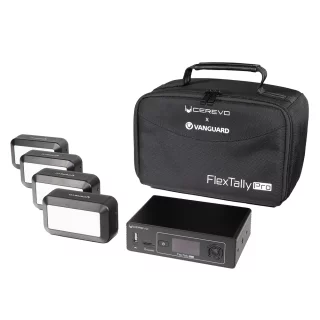

FlexTally Pro

SKU: CE-CDP-FT02B-BP
Category: Tally
Manufacturer: Cerevo

Suggested price:

1.188,81 €

incl. 19% VAT

Find retailer

New here? Contact us to create your B2B customer account: » Kontakt

Description

Cerevo FlexTally Pro is a flexibly configurable tally light system with advanced features. Equipped with a matrix LED for enhanced expressiveness, and FlexTally Pro supports both wired and wireless connections. With the ability to connect up to 128 lamps, it’s perfect for a variety of applications, from small studios to large-scale outdoor productions.

FlexTally Pro integrates effortlessly with more than 100 switchers from leading manufacturers. Each model is tested for compatibility to ensure reliable performance.

Features:

Supports GPIO (contact signal), USB, or Ethernet to interface with tally output of your switcher.
Supports up to 128 tally inputs with Ethernet interfaced switchers, or up to 16 with GPIO (contact signal) and USB. Tally inputs can be freely mapped to control up to 128 lamps. Can be used on a wide range of scales, from portables to studio grade switchers with many inputs.
Uses the 433MHz frequency band (available in US/EU models), which minimizes interference from Wi-Fi and Bluetooth while ensuring stable performance in challenging environments.* Limitation may apply.
Each FlexTally Pro Lamp Unit is equipped with 60 high-brightness full-color LEDs capable of displaying preset numbers, custom patterns or solid red and green indicators.
Combines robust wired Ethernet connections with wireless connectivity, all while maintaining performance. Wired connections supports PoE (Power over Ethernet) for a simplified setup with just one cable. You can also use a wired lamp as an antenna to wirelessly connect other lamps. You can freely expand the wireless connection range by placing multiple lamps as antennas.
Lamp brightness can be adjusted in four levels, ensuring optimal visibility in environments ranging from dark indoor studios to bright outdoor locations.
Three power options: PoE, USB Type-C, and an external battery (LP-E6 shape compatible). You can choose the optimal power source according to your environment.
FlexTally Pro Base Unit is a control hub with multiple connection options in a compact 1/3 rack-width design, redundant power support (2x USB Type-C), and self-standing operation (configuration and control directly via onboard buttons)

Use the embedded FlexTally Pro App to assign specific tally inputs to each lamp or customize matrix LED displays for your specific needs. Whether you're working in a small studio or a large-scale production, FlexTally Pro adapts to any scenario.

Tech Specs Base Unit:

Video Switcher Connectivity:
Physical Interfaces Available: Relay or open collector contacts, USB, or Ethernet
Contact Interface: Connector type: D-SUB 25 pins female, Input type: Relay or open collector contacts, Number of inputs: 16 contacts
USB Interface: Connector type: USB Type A connector, Supported protocols: USB MIDI Class Interface (Works with some switchers such as Roland V-1HD. See full compatibility list on Cerevo's website for more supported models)
Ethernet Interfaces: Connector type: RJ-45; Physical protocol: 10BASE-T / 100BASE-TX; Number of ports: 1 port (Shared with other features based on Ethernet); Supported protocols: Blackmagic Design ATEM series, Telestream Wirecast series, StudioCoast vMix series, NewTek TriCaster series *See the compatibility list for more supported models
Station to Lamp Connectivity: Physical Interface: Ethernet; Number of lamps supported: 128 units (Ethernet switch is required)
Power: Usable Power Sources: USB Type C, Number of ports: 2 ports, Nominal voltage / Maximum current: 5 [V] / 2 [A], Supply redundancy: yes
Physical Specifications: Dimensions: 145 x 100 x 42 mm, Mass: approx. 500 g

Tech Specs Lamp:

Station to Lamp Connectivity: Wired Interface: Physical interface: Ethernet, Physical protocol: 10BASE-T / 100BASE-TX, Number of ports: 1 port (Shared with other features based on Ethernet)
Lamp to Lamp Connectivity:
Wireless Interface: Physical interface: Proprietary radio, Frequency band: 433 MHz (for US/EU models), Max communication distance: 50 m (Line-of-sight, distance can be extended by setting a Lamp Unit as a Parent Lamp Unit)
Power:
Usable Power Sources: Power over Ethernet, USB, or rechangeable battery
Power over Ethernet: Supported protocols: IEEE802.3af, Nominal voltage / Maximum current: 48 V / 0.15 A
USB: Connector type: USB Type C connector, Number of ports: 1 port, Nominal voltage / Maximum current: 5 V / 1 A
Battery: Battery type: LP-E6 compatible battery pack (Not included with product), Nominal voltage / Maximum current: 7.4 V / 1 A, Operating Time: 6-12 hours (will vary depending on lamp brightness and usage environment)
Physical Specifications: Dimensions: 102 x 42 x 61 mm, Mass: approx. 120 g
