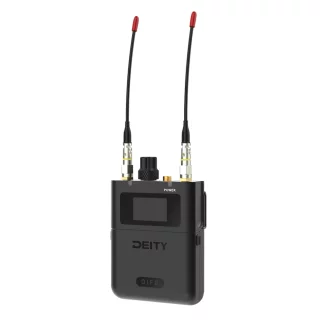

Deity DIFB
With Theos DIFB (Global Unit), Deity has launched a modern, digital IFB receiver with a metal housing, designed for fast and reliable cueing on set. Its ultra-wideband tuning (550-960 MHz) with Global OneBand detection adapts to local RF regulations.
The true diversity design with two SMA antennas ensures clean signal reception. A large color screen and a metal volume/selection knob allow for effortless control on the device. The lockable 3.5 mm headphone jack ensures secure reception. The device works with Theos transmitters and can scan/pair for quick deployment.
Deity DIFB's large color display makes it easy to navigate through the menu and settings. The home screen displays the current frequency and volume. Pressing the rotary knob allows you to easily switch between the two functions.
For productions that switch between channels and crews, Theos DIFB stores up to 20 frequency presets that can be quickly cycled through. Battery life is excellent: up to 17 hours with a lithium battery, approximately 10 hours with alkaline batteries, or approximately 9 hours with 1900 mAh NiMH. Alternatively, the device can be powered externally via USB-C, for example during all-day shoots.
The text-to-speech feature in the headset announces the respective DID name so that the user knows which feed they are currently monitoring, even if the device is attached to their belt. The Sidus Audio app control enables RF scans, bulk programming of preset memory locations, and frequency coordination control via smartphone.
Bluetooth headset support and Bluetooth app setup optimize monitoring and setup across departments. Package options are available for cost-effective team deployment.
Features:
- True Diversity Receiver
- Compatible with Theos Transmitters
- Ultra-wideband frequency: 550-960 MHz
- Two SMA connectors
- Metal headphone control
- Lockable 3.5 mm headphone jack
- Bluetooth app support; remote bulk setup
- Bluetooth headphone support
- Up To 17 hours battery life
Tech Specs:
- Proprietary digital RF modulation
- RF frequency ranges are assigned depending on the region
- RF frequency step: 100 kHz
- RF bandwidth: 200 kHz
- Minimum frequency interval: 700 kHz
- Antenna connection: 2 × 502 SMA
- Dynamic range: 105 dBm
- Distortion: less than 0.5 percent
- DAC bit depth: 24 bits
- Power supply: 2 AA batteries
- Operating temperature: 20 to 45 degrees Celsius
- Dimensions (H x W x D): approx. 8.3 x 6.4 x 2 cm
- Weight: approx. 106 g (without batteries/antenna), approx. 117 g (without battery/with antenna) or approx. 149 g (with battery/antenna)
